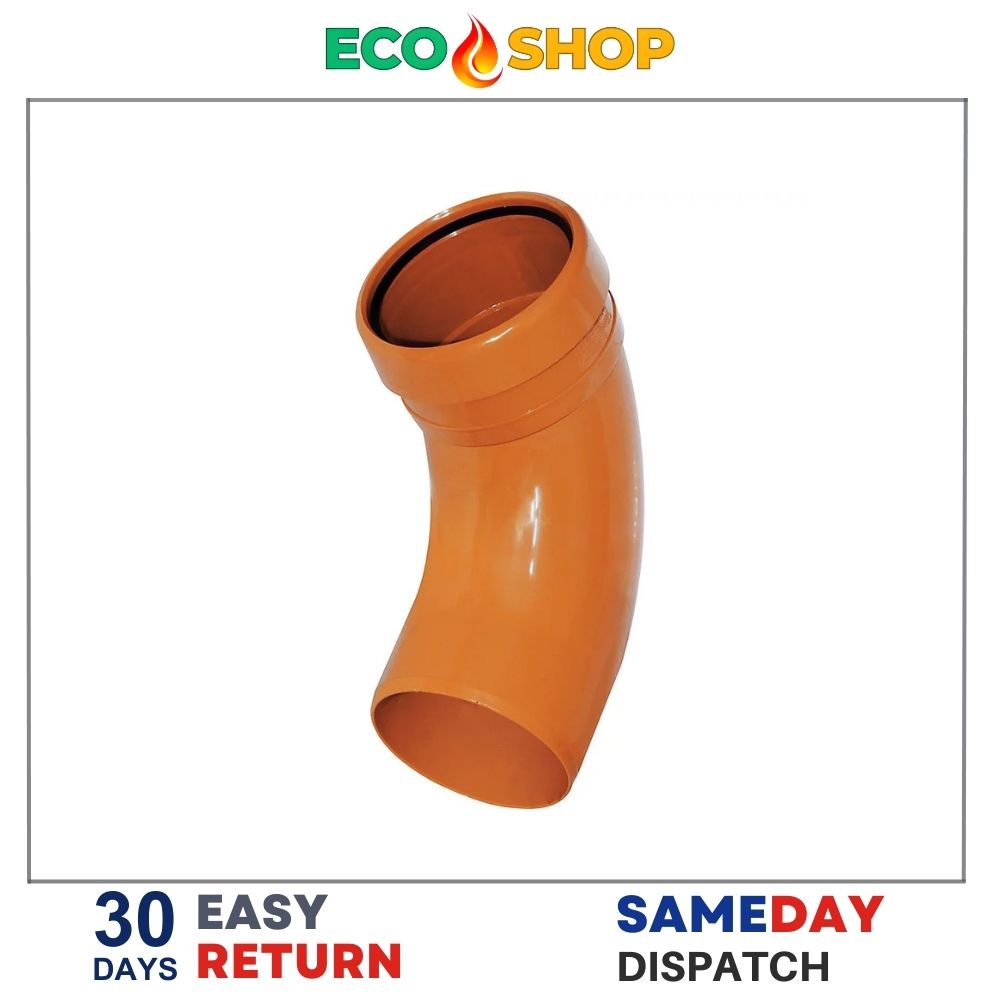

110mm 90 Degree Single Socket Bend – Heavy-Duty Drainage Elbow

The 90 Degree Bend Single Socket is a fundamental fitting for any 110mm underground drainage project. Specifically designed to change pipe direction by 90 degrees, this single socket 90 degree bend 110mm is most commonly used for connecting gully traps or toilet waste to the main sewer run. At ECO Heat Shop, we offer high quality bend pipes that combine structural strength with a smooth internal bore to ensure maximum flow.

Built for Professional Underground Systems

Constructed from high-grade PVC-u, this waste pipe single socket is a durable 110mm bend pipe designed for long-term burial. The sewer 90 degree single socket configuration allows for easy jointing—simply push a plain-ended pipe into the socketed end and fit the spigot end into your next fitting. It is widely regarded as the best 90 degree bend pipe for its balance of rigid construction and ease of use.

Technical Specifications

• Size: 110mm (4 Inch)
• Angle: 90 Degree
• Connection: Single Socket (One push-fit socket, one spigot end)
• Material: Heavy-duty, high-impact PVC-u
• Seals: Captive rubber ring seal for a 100% leak proof fit
• Compatibility: Fully compatible with all UK standard 110mm underground drainage systems

ECO Heat Shop Tip: While a single socket elbow 110mm is perfect for 90-degree turns, always ensure the flow is correctly directed. If you are working on a main horizontal run, consider using two 45-degree bends instead to create a “long radius” turn, but for vertical drops into a main line, this drainage single socket 110mm is the ideal choice.

Get the right angle for your project. Order your 110mm 90 Degree Single Socket Bend online today from ECO Heat Shop.
