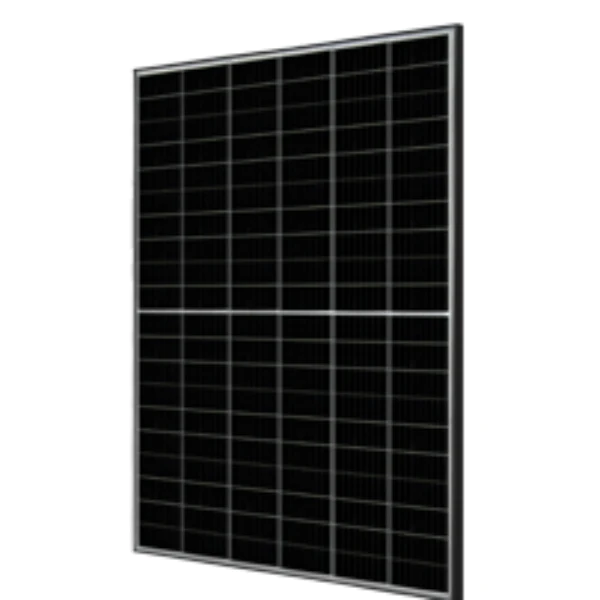

JA Solar 340w Black Frame Solar Panel
Technical Specifications:
Part no: JAM60S-10-340-MR-BF-MC4
- Cell: Mono
- Weight: 18.7kg ±3%
- Dimensions: 1689±2mm x 996±2mm x 35±1 mm
- No. of Cells: 120 (6×20)
- Maximum Power: 340w
- Maximum Power Voltage: 41.36v
- Maximum Power Current: 9.82A
- Efficiency: 20.2%
Price Available on Request
- Description
- Additional information
Description
Details
An efficient 340w solar panel with high power output. The half-cell configuration of the modules provide a high power output, better temperature-dependent performance. The advanced technology in these panels means there is a reduced shading effect so the panels will still work on more overcast days. There is a lower risk of hotspot and enhanced tolerance for mechanical loading so the panels can withstand heavy rain fall and snow.. Finished with a black frame and white back sheet.
This panel is a brilliant addition to a solar system to provide clean, solar energy whilst saving money on energy bills. These panels also come with a 12-year product warranty and 25-year linear power output warranty.
Product Features:
- Cost effective – Use clean solar energy and save across the energy you would usually take from the grid.
- Durable – These panels can withstand heavy rain and snow.
- Work on cloudy days – Even if the light available is low the advanced technology means the panels will still operate and take what energy they can.
- Environmentally friendly – Create clean, renewable solar energy to reduce the emissions and your carbon footprint.
- Customer guarantee – 12-year product warranty and 25-year linear power output warranty
Certification:
- IEC 61215, IEC 61730
- ISO 9001: 2015
- ISO 14001: 2015
- OHSAS 18001: 2007
- IEC TS 62941: 2016
Download: JA_Solar_340w.pdf
Additional information
| Weight | 22 kg |
|---|---|
| Dimensions | 1689 × 996 × 35 mm |
