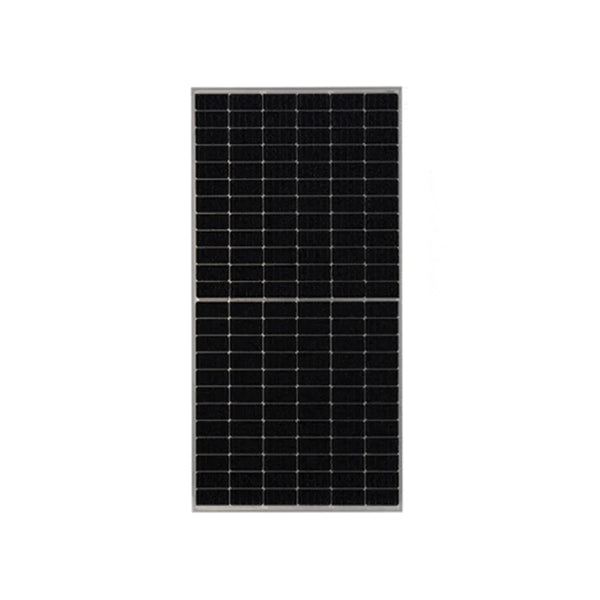

JA Solar 595W Mono MBB N-Type Half-Cell Silver Rigid Solar Panel
✔️ Rated Power: 595 W
✔️ Length: 2,333 mm
✔️ Width: 1,134 mm
✔️ Depth: 30 mm
✔️ Clamp position on panel: Long and short side
✔️ Connector Type: Round PostEfficiency: 22.5 %
Price Available on Request
- Description
- Additional information
Description
Details
The JA Solar 595W Solar Panel features multi-busbar PERC Cells. Its half-cell configuration provides high power output, improved temperature performance, reduced shading effects, lower hotspot risk, and enhanced mechanical loading tolerance.
Product Features:
- Weight: 32.5 kg
- Rated Power: 595 W
- Length: 2,333 mm
- Width: 1,134 mm
- Depth: 30 mm
- VMPP: 43.41 V
- IMPP: 13.65 A
- Isc: 14.42 A
- Voc: 52.2 V
- Temp. Coefficient (Mpp): -0.3 %
- Clamp position on panel: Long and short side
- Connector Type: Round Post Efficiency: 22.5 %
Datasheet
Download: Catalogue.pdf
Additional information
| Weight | 32.5 kg |
|---|---|
| Dimensions | 2333 × 1134 × 30 mm |
