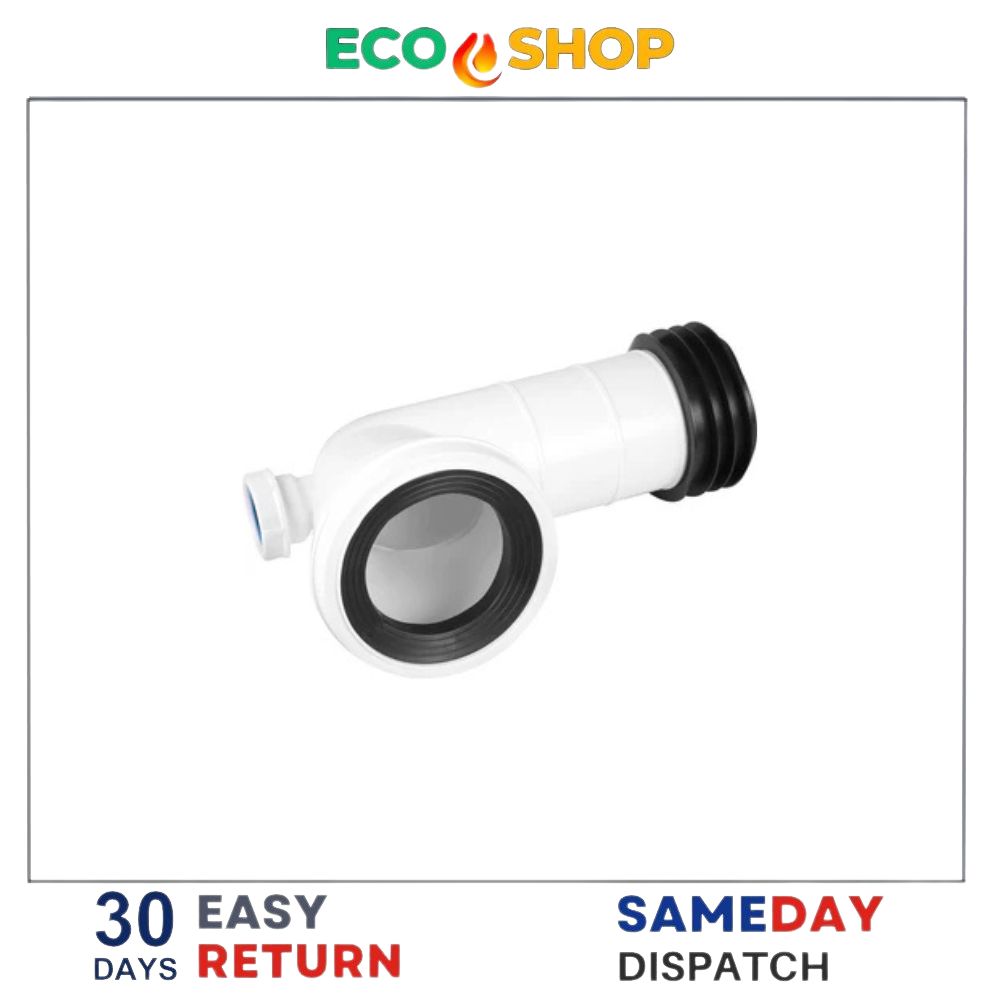

Maximize your bathroom layout with our Rigid Space Saver Pan Connector. This 90-degree right-angle fitting features an integrated 32mm (1 1/4″) outlet, allowing you to connect a secondary waste line—such as a basin or bidet—directly into the main toilet soil pipe.
Dual-Action Design: Combines a standard 110mm toilet connection with a 32mm boss for streamlined plumbing.
Compact 90° Bend: Tight radius design saves critical floor space behind “back-to-wall” or close-coupled toilets.
Triple-Seal Technology: Equipped with a multi-finned rubber gasket for a 100% gastight and leak-proof connection
£9.50 Incl. VAT
A space saver pan connector is a specialized 110mm (4 inch) plumbing fitting used to connect a toilet to the soil stack while simultaneously providing a secondary entry point for a smaller waste pipe. The integrated 32mm outlet is specifically designed to accept waste from a bathroom basin, vanity unit, or bidet, eliminating the need to drill a separate hole in the main soil stack.
In modern UK bathrooms, space is at a premium. Our 90-degree space saver bend features a compact “knuckle” profile that sits closer to the wall than traditional long-tail connectors. By choosing a rigid polypropylene construction over flexible alternatives, you ensure a smoother internal bore. This significantly reduces the risk of “snagging” and blockages, which are more common in dual-entry systems where water volume varies between the toilet flush and basin drainage.
At ECO HEAT SHOP, we prioritize hybrid solutions that simplify installation. This connector features a professional-grade, multi-finned EPDM rubber seal that creates a high-pressure friction fit inside any standard 110mm PVC-U or cast iron pipe. The 32mm boss is precision-molded to ensure a watertight transition for secondary pipework, making it the ideal choice for en-suites and cloakrooms where multiple fixtures must share a single waste exit.
Main Diameter: 110mm / 4 Inch (Standard UK Soil Pipe)
Secondary Outlet: 32mm / 1 1/4 Inch (Standard Basin Waste)
Angle: 90 Degrees (Right Angle)
Material: High-Impact Polypropylene (White)
Seal Type: Integrated Multi-Fin Rubber Gasket
Application: Ideal for small bathrooms, en-suites, and “back-to-wall” toilet installations.
Whether you are a professional plumber looking to simplify a complex waste run or a DIYer renovating a compact cloakroom, this 90-degree space saver pan connector provides the structural integrity and professional-grade security needed for a compliant UK plumbing system.
| Weight | 0.6 kg |
|---|---|
| Dimensions | 120 × 32 × 90 mm |
