Description

Description:

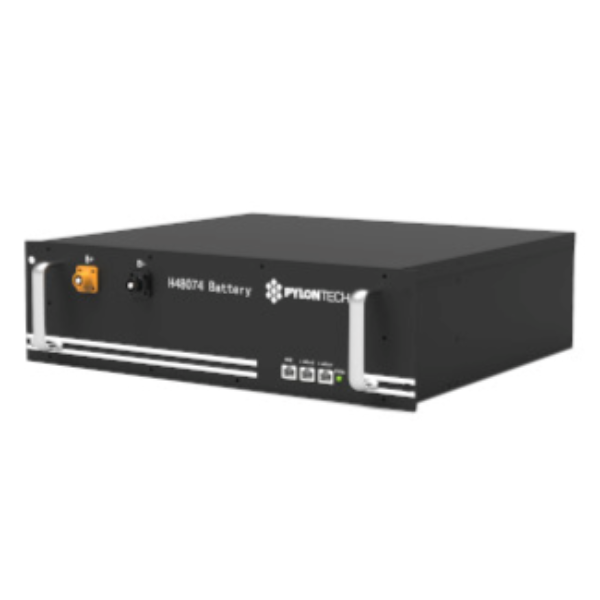

The Pylontech PowerCube H2 is a high-performance lithium-ion battery pack designed for flexible and scalable energy storage solutions. With a capacity of 3.552kWh and operating at 48V with 74Ah, this modular battery is ideal for high-voltage applications. It is part of the PowerCube series, renowned for its adaptability in both rack-mounted and container-based configurations.

Key Features:

• Modular and Scalable Design: The PowerCube H2 can be configured with 5 to 12 modules per rack and up to 6 racks in series, allowing for a highly adaptable system that can grow with your needs. This configuration supports a voltage range from 240V to 864V, making it suitable for various high-voltage applications.
• Advanced LiFePO4 Technology: Utilises lithium iron phosphate (LiFePO4) technology, which ensures high safety standards and a long cycle life. This technology provides reliable performance and durability.
• Enhanced System Safety: The integrated Battery Management System (BMS) includes protections for charge, current, and temperature, ensuring the safety and longevity of the battery system.
• Flexible Installation Options: Can be installed in either rack-mounted or container-based systems, providing versatility to meet different installation requirements.
• Comprehensive Connectivity: Each battery module comes equipped with a communication cable and an orange power cable, facilitating easy integration and setup.

Important Notes:

• BMS Requirements: A BMS unit and an external cable kit are necessary for each individual stack of batteries. For configurations with multiple BMS units, an MBMS (Master Battery Management System) is required.
• Minimum Configuration: A minimum of 5 battery modules is required for proper BMS operation.

Technical Specifications:

• Capacity: 3.552kWh
• Voltage: 48V
• Ah Rating: 74Ah
• Modular Configuration: 5 – 12 modules per rack; up to 6 racks in series
• BMS Voltage Range: 240VDC to 864VDC
• Battery Technology: LiFePO4
• Safety Features: Charge, current, and temperature protection
• Included Accessories: 1 x Communication Cable, 1 x Orange Power Cable per module

Contact Us:

For more information on the Pylontech PowerCube H2, including availability, bulk orders, or specific installation requirements, please contact us. Our team is available to provide detailed assistance and support for your energy storage needs.
