Description

Description:

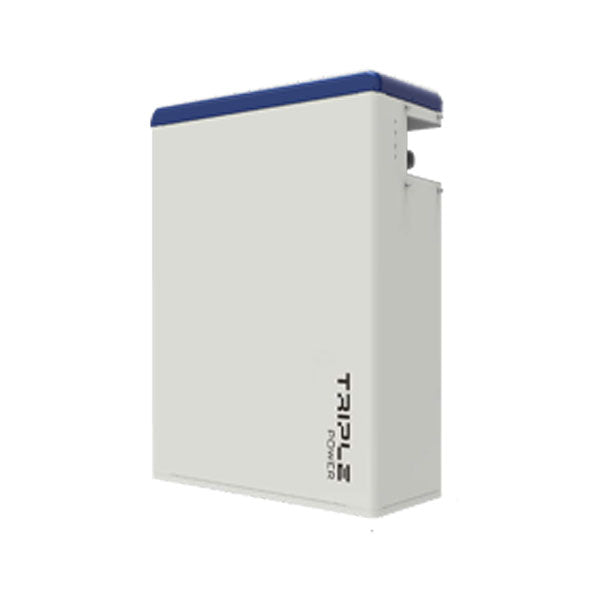

Enhance your energy storage capabilities with the SolaX Triple Power HV 5.8kWh LFP Extension Battery SLAVE V2. Designed to complement the X1-Hybrid, X3-Hybrid, and X1-AC systems, this extension battery offers a scalable solution for expanding your storage capacity. When paired with the corresponding Master Battery, it can significantly boost your system’s energy storage and efficiency.

Key Features:

• Scalable Storage: When used with a Master Battery, up to three SLAVE batteries can be connected in series (charger dependent), allowing for a total storage capacity of up to 23.2kWh.
• Charge/Discharge Rate: Capable of handling up to 4kW for both charging and discharging, providing robust performance for various energy needs.
• High Voltage Advantage: The high voltage design means you can use thinner cables, simplifying installation and reducing costs.
• Compact Design: Its compact size makes it easy to install without taking up too much space.
• Depth of Discharge: Achieves a 90% depth of discharge, offering efficient energy use.
• Long Lifespan: With 6000 life cycles, this battery ensures long-term reliability and performance.
• Easy Installation: Plug-and-play setup with all necessary cables included for a straightforward installation process.

Compatibility Notes:

• Scalability Limits:
  • In a single-phase system, you can use up to 1 or 2 SLAVE batteries with 1 Master Battery (maximum 3 batteries total).
  • In a three-phase system, you can use up to 2 or 3 SLAVE batteries with 1 Master Battery (maximum 4 batteries total).
• Battery Matching: The Triple Power LFP 5.8kWh SLAVE batteries are only compatible with the LFP 5.8kWh Master Batteries. They are not compatible with Generation 1 or 2 BMS or batteries.
• Required Pairing: This HV11550-58 Extension (Slave) Battery requires the HV-T-BAT-H-58 Main Battery (Master) to function correctly.

Technical Specifications:

• Capacity: 5.8kWh
• Charge/Discharge Rate: Up to 4kW
• Depth of Discharge: 90%
• Cycle Life: 6000 life cycles
• Design: Compact and high voltage
• Installation: Plug-and-play with included cables
