Description

Description

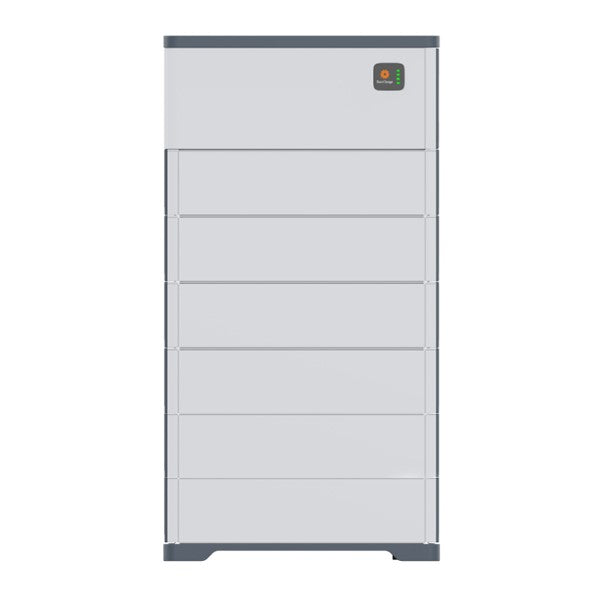

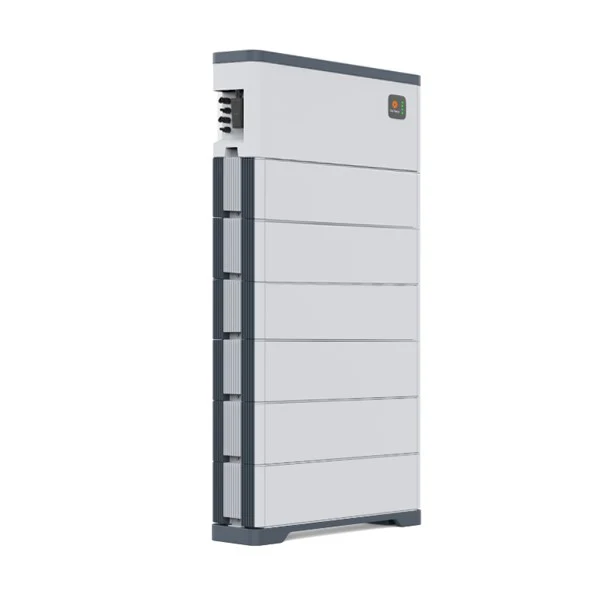

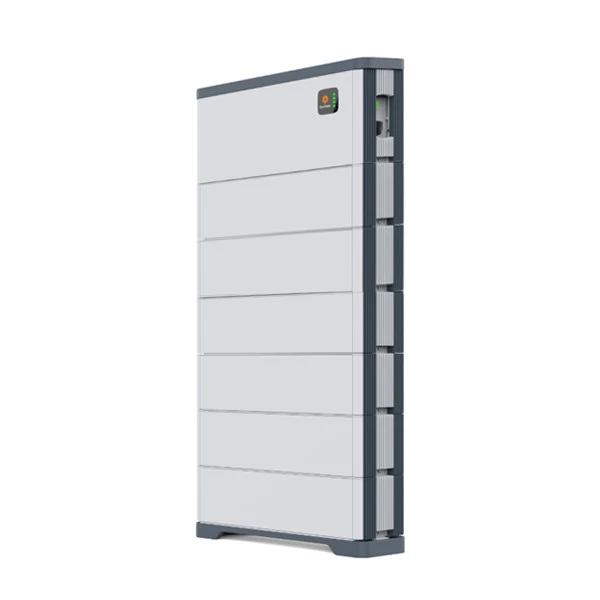

The StarCharge vLight 20kWh DC-Coupled Battery offers a superior alternative to traditional AC-coupled systems by directly receiving energy from your solar panels. This design improves efficiency and reduces costs as the stored energy is converted fewer times. The battery’s modular design supports easy installation and is compatible with most string inverters, ensuring a seamless integration into your existing solar setup.

Key Features

• DC-Coupled System: Stores energy directly from your solar panels, enhancing the efficiency of your photovoltaic (PV) energy use. This method reduces energy loss compared to AC-coupled systems, which require multiple inverter passes.
• Modular Design: Composed of six battery modules and a battery management system, making installation straightforward. Each module weighs less than 30kg, allowing for easy handling by a single person.
• Wide Compatibility: Compatible with most solar inverters, facilitating flexible integration into existing systems without the need for extensive rewiring.
• No Additional Inverter Required: Operates without the need for a separate storage inverter, simplifying your energy system.
• Easy Retrofit: Can be integrated into existing solar installations without changes to AC wiring, making it a hassle-free upgrade.
• Durability: Features an ingress protection rating of IP55, ensuring reliable performance in various environmental conditions.

Technical Specifications

• Capacity: 20 kWh
• Number of Modules: 6
• Battery Management System: Included
• Dimensions: 795mm (W) x 218mm (D) x 1533mm (H)
• Total Weight: 196.7 kg
• Ingress Protection Rating: IP55

Applications

• Residential and Commercial Use: Suitable for both home and business applications, providing efficient energy storage and easy integration with existing solar systems.
• Retrofitting: Ideal for upgrading current solar setups without requiring significant modifications to existing infrastructure.

Contact Us

For further details about the StarCharge vLight 20kWh DC-Coupled Battery, including installation support or compatibility inquiries, please reach out to us. Our team is here to assist with any questions and help you enhance your solar energy system.

Additional information

Download: 2024.06.17_002_vLight_DataSheet.pdf
