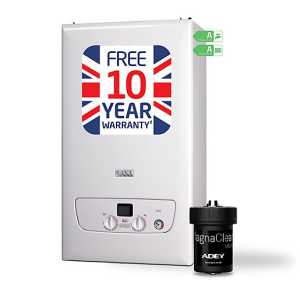

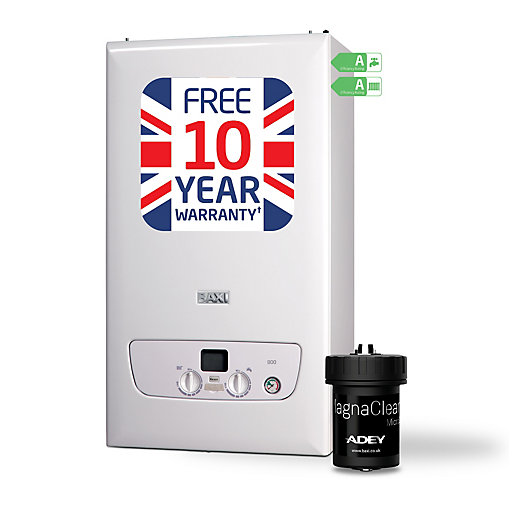

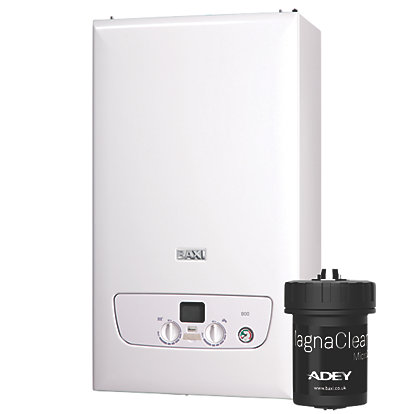

Baxi 836 Combi 26kW Gas Boiler
British-built, compact and lightweight, with tough brass hydraulics. OpenTherm interface allows operation using a smartphone or tablet. Compact dimensions allow the boiler to be installed in a standard 300mm deep kitchen cupboard.
- Max. Domestic Hot Water Output: 36kW
- Max. Central Heating Output: 25kW
- Stainless Steel Heat Exchanger
- Top Flue Outlet
- Not Compatible with Solar Panels
- 10 Year Manufacturer’s Guarantee (Registration Required, T&Cs Apply)
- 122,904BTU
- LCD Display
- OpenTherm Interface
Price Available on Request
- Description
- Additional information
Description
SPECIFICATION | |
|---|---|
| BTU | 122,904 BTU |
| Boiler Depth | 285 mm |
| Boiler Height | 700 mm |
| Boiler Type | Combi |
| Boiler Width | 390 mm |
| Brand | Baxi |
| CALC – Fuel Type | Gas |
| Colour | White |
| Compatible with Solar Panels | Not Compatible with Solar Panels |
| Display Type | LCD Display |
| Energy Rating (Heating) | A |
| Energy Rating (Water) | A |
| Filling Loop Supplied | Filling Loop Supplied |
| Fitting Requirements | Must be Fitted by a Qualified Installer |
| Fixing Jig Supplied | Fixing Jig Supplied |
| Flow Rate (Ltr/Min) | 15 Ltr/min |
| Flue Connection Diameter | 60/100 mm |
| Flue Outlet Position | Top Flue Outlet |
| Flue Supplied | Flue Not Supplied |
| Frost Protection | Frost Protection |
| Fuel Type | Gas |
| Indoor/Outdoor Usage | Indoor |
| LPG Conversion Kit Supplied | Not LPG Compatible |
| Manufacturer Guarantee | 10 Year Manufacturer’s Guarantee (Registration Required, T&Cs Apply) |
| Max. Heat Output CH (Pn) | 25 kW |
| Max. Heat Output DHW (Pn) | 36 kW |
| Model Name/No | 836 |
| Pack Size | 1 |
| Parent Colour | White |
| Pieces in Pack/Case | 1 |
| Product Returns Note | We cannot accept the return of unwanted boilers if the box/packaging has been opened (your statutory rights are not affected). |
| Product Type | Boiler |
| Range Name | 800 |
| SAP Seasonal Efficiency | 93 % |
| Sound Pressure Level | 51 dB |
| Supplier Manufacturer Helpline | 0121 2270770 |
| Temperature Range (Heating) | 25 to 80 °C |
| Temperature Range (Water) | 35 to 60 °C |
| Total Product Weight | 30.5 kg |
PRODUCT CONTENTS
Boiler, Easy-Fill filling link, hanging bracket, copper tails, isolation valves, Adey Micro 2 filter and filter spanner.
Additional information
| Weight | 30.5 kg |
|---|---|
| Dimensions | 285 × 390 × 700 mm |
This Just Arrived!

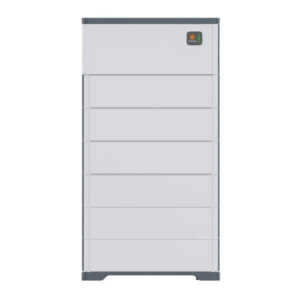

High Voltage BatteriesSolarEdge Home 9.7kWh 400V Battery Storage | BAT-10K1PS0B-02
