Description

Description:

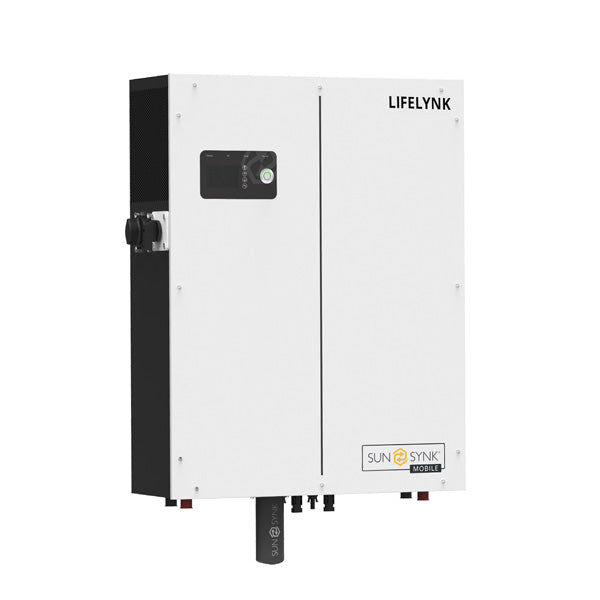

The Sunsynk Lifelynk X 3.6kW Hybrid Inverter is designed to streamline and accelerate your solar installation process. This all-in-one, plug-and-play unit integrates seamlessly with existing solar PV systems and is expandable to meet future energy needs. With its dedicated Sunsynk Connect platform, you gain full control and customization options, making it ideal for both new installations and retrofits.

This hybrid inverter combines a 3.6kW inverter, a 3.84kWh LiFePO4 battery, and a 4.5kW MPPT in a compact, efficient package. It also supports emergency power systems and is compatible with EV chargers, providing versatile energy solutions for residential and small-scale commercial applications.

Key Features:

• Efficient Installation: Quick and straightforward to install, making it perfect for smaller properties, social housing, and local government projects.
• All-in-One Design: Combines a 3.6kW hybrid inverter, 3.84kWh LiFePO4 battery, and 4.5kW MPPT in a single unit.
• User-Friendly Display: Features an easy-to-understand LCD display for straightforward operation.
• Flexible Monitoring: Supports both Wi-Fi and GSM monitoring options for remote access and control.
• Optimized Performance: Includes inbuilt MPPT trackers and smart-settable three-stage MPPT charging to enhance battery performance.
• Convenient Setup: Comes with preset factory settings and inbuilt connection ports for load, grid, CT, and WiFi data logger.
• Customizable Control: Fully programmable controller with supply priority settings for battery or grid.

Technical Specifications:

• Power Rating: 3.6kW
• Battery Capacity: 3.84kWh LiFePO4
• MPPT Rating: 4.5kW
• Display: LCD
• Monitoring Options: Wi-Fi or GSM
• Ingress Protection: IP20
• Dimensions:
  • Height: 701mm
  • Length: 534mm
  • Width: 182mm
• Weight: 51.7kg

Applications:

• Retrofit Friendly: Ideal for integration with existing solar PV installations.
• Expandable: Battery capacity can be increased as needed.
• Emergency Power: Capable of powering an emergency power system during outages.
• EV Charger Compatible: Suitable for installation alongside EV chargers.

Contact Us:

For more information about the Sunsynk Lifelynk X 3.6kW Hybrid Inverter, including installation support or compatibility queries, please contact us. Our team is ready to assist with expert advice and help you achieve the best performance from your solar energy system.
