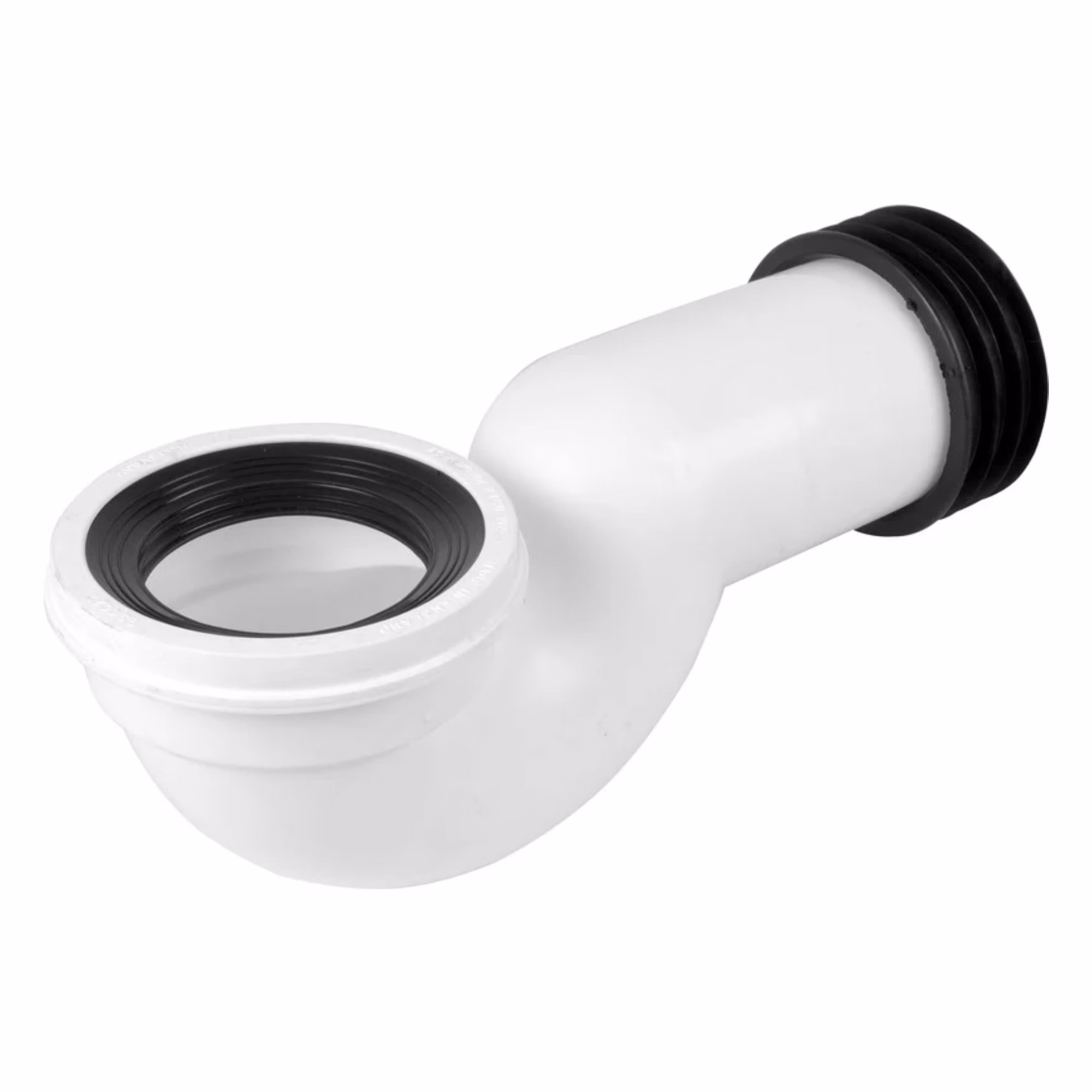

110mm (4 Inches) Swan Neck WC Toilet Pan Connector

Bridge complex vertical and horizontal alignments between your toilet pan and soil pipe with this high-performance 110mm (4″) swan neck pan connector. Specifically engineered to navigate tricky installation heights and tight rear clearances, this curved fitting provides a reliable, gas-tight, and leak-free connection for domestic WC installations.

Key Features & Performance

• Swan Neck Curved Profile: Specially designed geometry allows for vertical level correction and smooth offset alignment between the toilet spigot and soil pipe.
• Universal Inlet Fit: Features a flexible rubber socket ring that snugly accommodates standard WC pan spigots with outer diameters ranging from 85mm to 107mm.
• Multi-Fin Rubber Outlet Seal: Equipped with heavy-duty elastomeric fins on the 4″ outlet spigot (48mm depth) to form an airtight, watertight friction seal inside 110mm soil pipes.
• High-Grade Polypropylene Body: Robust, smooth-bore construction resists chemical cleaners, impacts, and long-term wear.
• Smooth Internal Flow: Curvature minimizes waste accumulation and maximizes flush velocity for superior drainage performance.
• UK Standard Compliance: Fully compliant with standard UK building codes and BS EN plumbing standards for soil and waste systems.

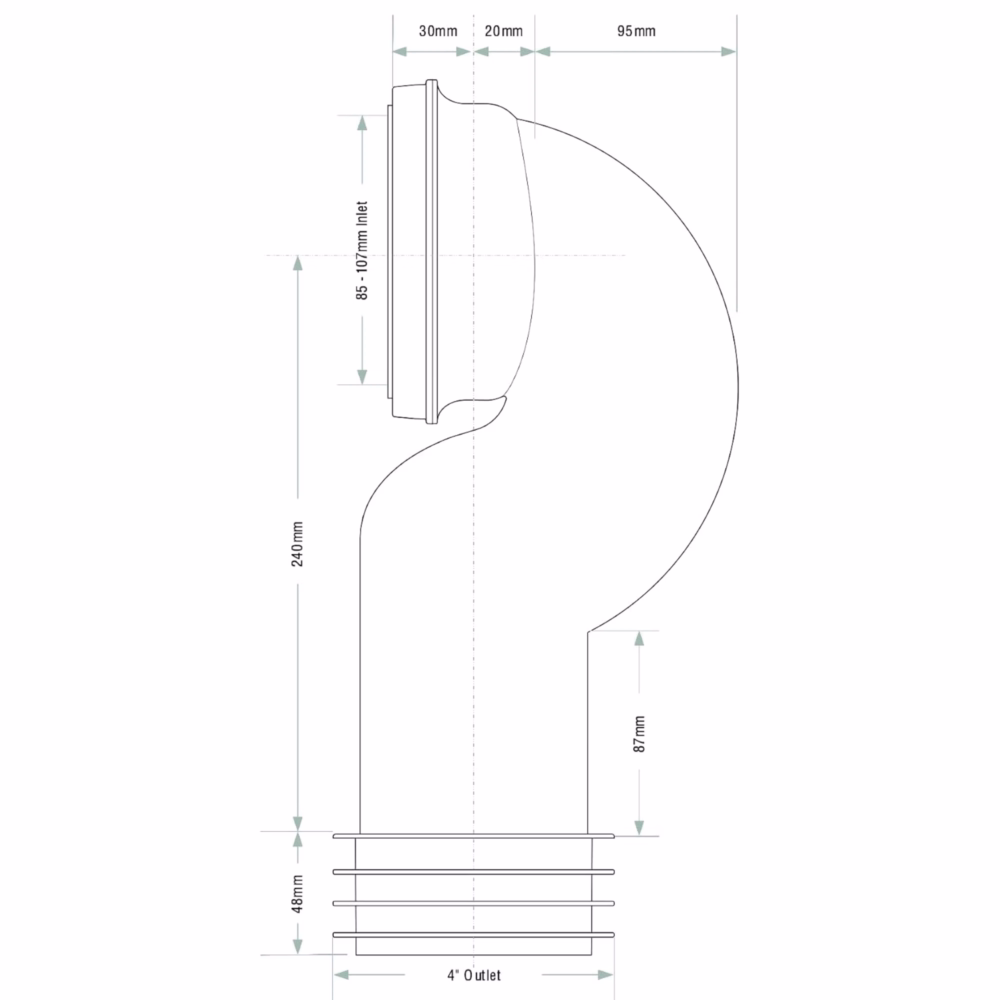

Product Specifications

Installation Guidelines

1. Ensure the interior of the 110mm soil pipe and the exterior of the WC pan spigot are clean and dry.
2. Apply a suitable silicone lubricant or soapy solution to the multi-fin rubber seal on the 4″ outlet.
3. Push the finned outlet firmly into the 110mm soil pipe until fully seated (minimum insertion depth of 48mm).
4. Align the socket end with the toilet pan spigot and push the toilet firmly into position to complete the watertight seal.
